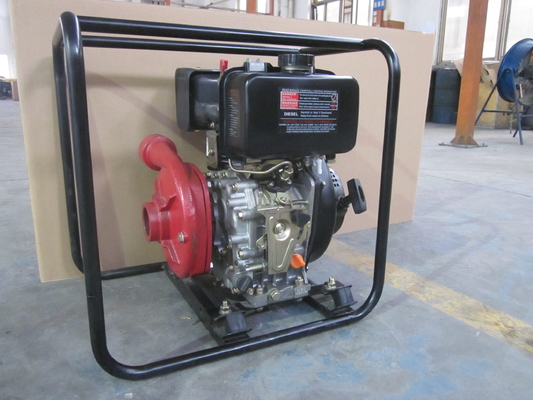

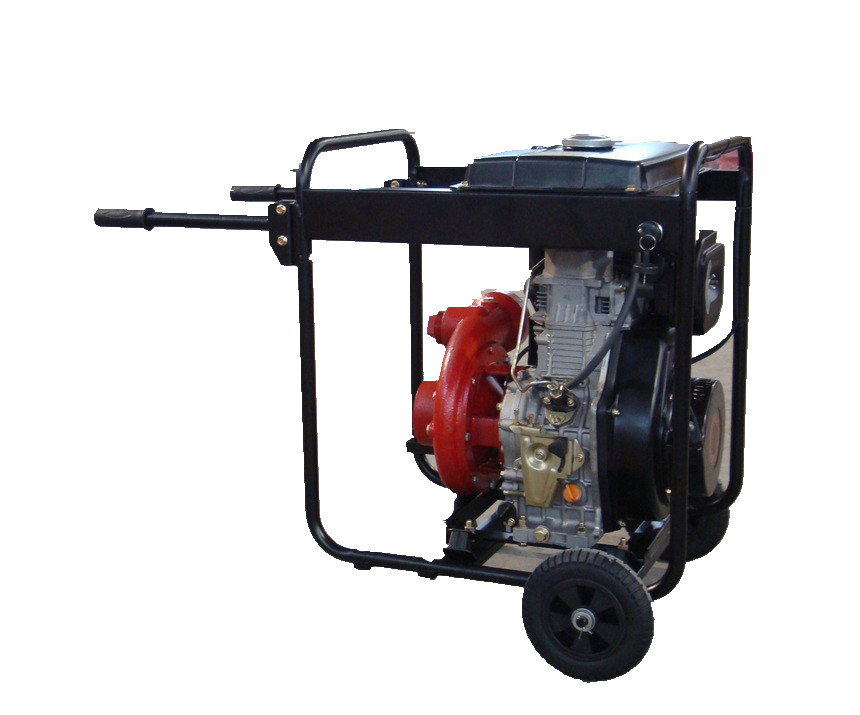

Cast Iron High Pressure Water Pump Big Fuel Tank KDP30H With Handles And Wheels
Thông tin chi tiết sản phẩm:
| Place of Origin: | CHINA |
| Hàng hiệu: | KAIAO |
| Chứng nhận: | CE |
| Model Number: | KDP30H |
Thanh toán:
| Minimum Order Quantity: | 5 |
|---|---|
| Packaging Details: | CARTONS |
| Payment Terms: | Western Union, T/T, L/C |
|
Thông tin chi tiết |
|||
| áp lực: | Cao | vật liệu bơm: | gang thép |
|---|---|---|---|
| Sức mạnh: | chạy bằng nhiên liệu diesel | Áp lực: | Cao |
| Mô hình: | KDP30H | Kích thước (D*R*C)(mm): | 675*565*735 |
| Làm nổi bật: | Bơm Diesel cao áp,Máy bơm nước áp suất cao bằng sắt đúc,Bơm nước áp suất cao bể nhiên liệu |
||
Mô tả sản phẩm
Water pump
1. ISO&CE improved
2. Driven by strong KAIAO 4-stroke diesel engine
3. Bilobed wheel design
4. Full frame structure ensures the outstanding performance of the pump in extremely hard condition.
| Diesel Water Pump(IRON) 3" High Pressure | |
| with handles,and 2*9inch wheels | |
| Model | KDP30H |
| Diameter(mm) (inch) | 80(3" ) |
| Max. flow(m3/h) | 47 |
| Rated total head(m) | 75 |
| Max. suction head(m) | 8 |
| Rotational speed(rpm) | 3600 |
| Self-priming time(s/4m) | 120 |
| Pump shaft | Steel |
| Pump housing | cast iron |
| Impeller | cast iron |
| connection type | direct |
| Self-priming time(s/4m) | 40 |
| Engine model | KA186FA |
| Engine type | Single-cylinder, vertical, four-stroke,air cooled |
| Bore*stroke(mm) | 86*72 |
| Displacement (L) | 0.418 |
| Power (kW) | 6.3/3600 |
| Fuel consumption rate(g.kW/h) | 281 |
| Compression ratio | 19 |
| Lubrication system | Pressure splash Type |
| Engine starting system | Electric starter |
| Fuel oil model | Summer:0#,Winter:-10# |
| Lube oil model | SAE10W-30 (above CD grade) |
| Lube oil capacity (L) | 1.1 |
| Fuel tank capacity (L) | 12.5 |
| Dimension (L*W*H)(mm) | 675*565*735 |
| Net weight(Kg) | 62 |
| Gross weigt(Kg) | 70 |
