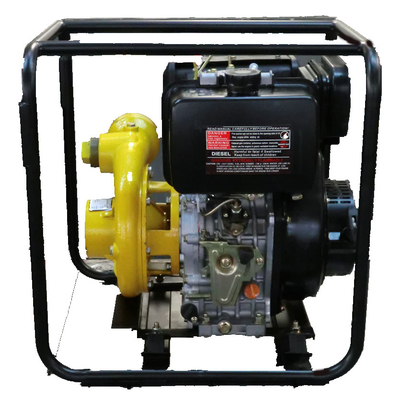

3 Inch Diesel Fuel Driven High Pressure Water Pump 5.5L Fuel Tank KDP30HS
Thông tin chi tiết sản phẩm:
| Place of Origin: | CHINA |
| Hàng hiệu: | KAIAO |
| Chứng nhận: | CE |
| Model Number: | KDP30HS |
Thanh toán:
| Minimum Order Quantity: | 5 |
|---|---|
| Packaging Details: | CARTONS |
| Payment Terms: | Western Union, T/T, L/C |
|
Thông tin chi tiết |
|||
| áp lực: | Cao | vật liệu bơm: | gang thép |
|---|---|---|---|
| Sức mạnh: | chạy bằng nhiên liệu diesel | Mô hình: | KDP30HS |
| Dòng chảy tối đa ((m3/h): | 47 | Đường kính (mm) (in): | 80(3") |
| Làm nổi bật: | Máy bơm nước áp suất cao nhiên liệu diesel,Máy bơm nước áp suất cao 5.5L,KDP30HS 3 inch bơm nước áp suất cao |
||
Mô tả sản phẩm
Water pump
1. ISO&CE improved
2. Driven by strong KAIAO 4-stroke diesel engine
3. Bilobed wheel design
4. Full frame structure ensures the outstanding performance of the pump in extremely hard condition.
| 3"INCH IRON High Pressure Water Pump | |
| Model | KDP30HS |
| Diameter(mm) (in) | 80(3" ) |
| Max. flow(m3/h) | 47 |
| Max. lift(m) | 80 |
| Max. suction lift(m) | 8 |
| Rotational speed(rpm) | 3600 |
| Self-priming time(s/4m) | 40 |
| Pump shaft | Steel |
| Pump housing | cast iron |
| Impeller | cast iron |
| Engine model | KA186F |
| Engine type | Single-cylinder, vertical, four-stroke,air cooled |
| Bore*stroke(mm) | 86*70 |
| Displacement (L) | 0.406 |
| Power (kW) | 6.3/3600 |
| Fuel consumption rate(g.kW/h) | 281 |
| Compression ratio | 19 |
| Lubrication system | Pressure splash Type |
| Engine starting system | Recoil starter |
| Fuel oil model | Summer:0#,Winter:-10# |
| Lube oil model | SAE10W-30 (above CD grade) |
| Lube oil capacity (L) | 1.1 |
| Fuel tank capacity (L) | 5.5 |
| Dimension (L*W*H)(mm) | 605*525*625 |
| Net weight(Kg) | 75 |
| Gross weigt(Kg) | 78 |
